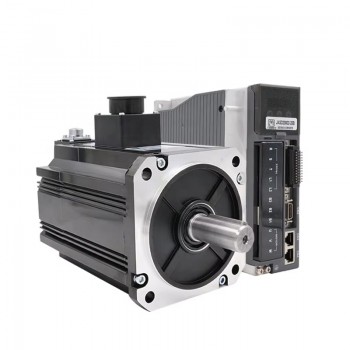

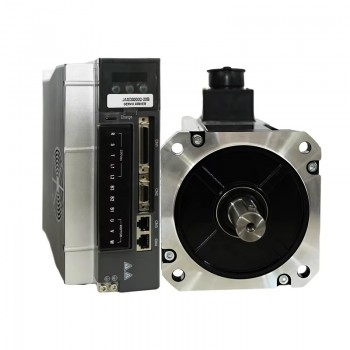

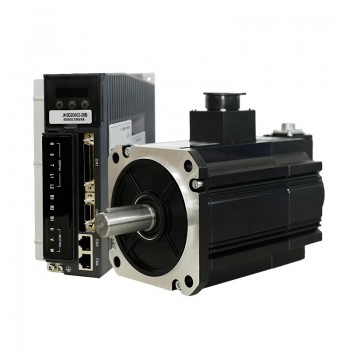

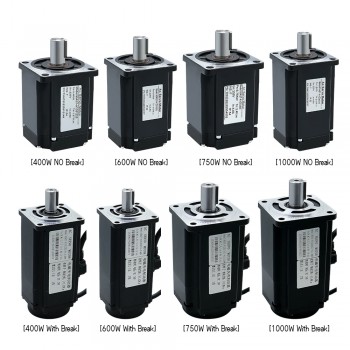

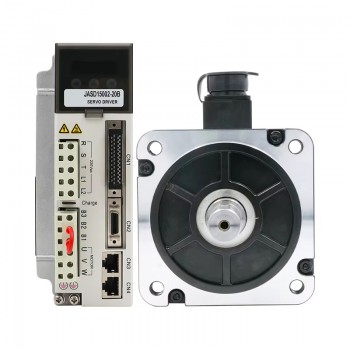

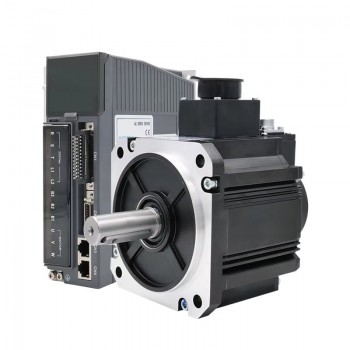

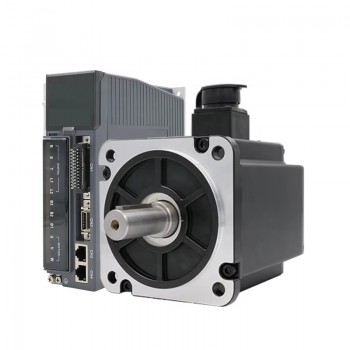

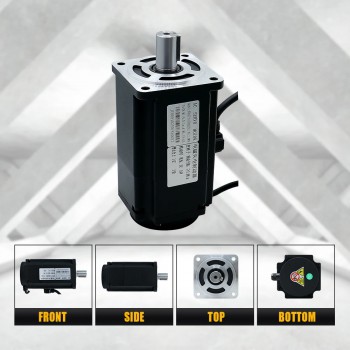

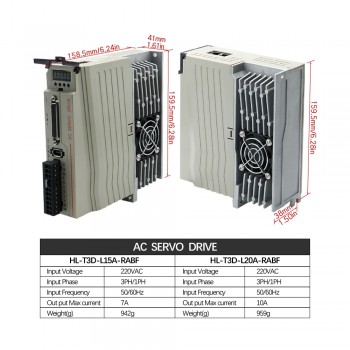

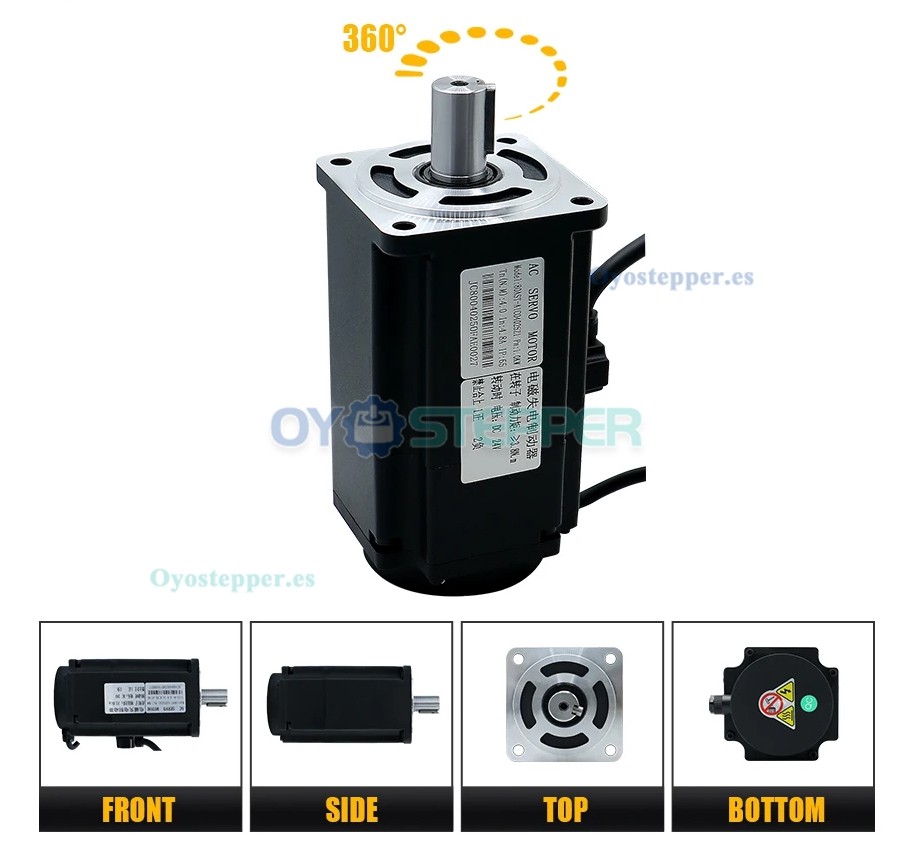

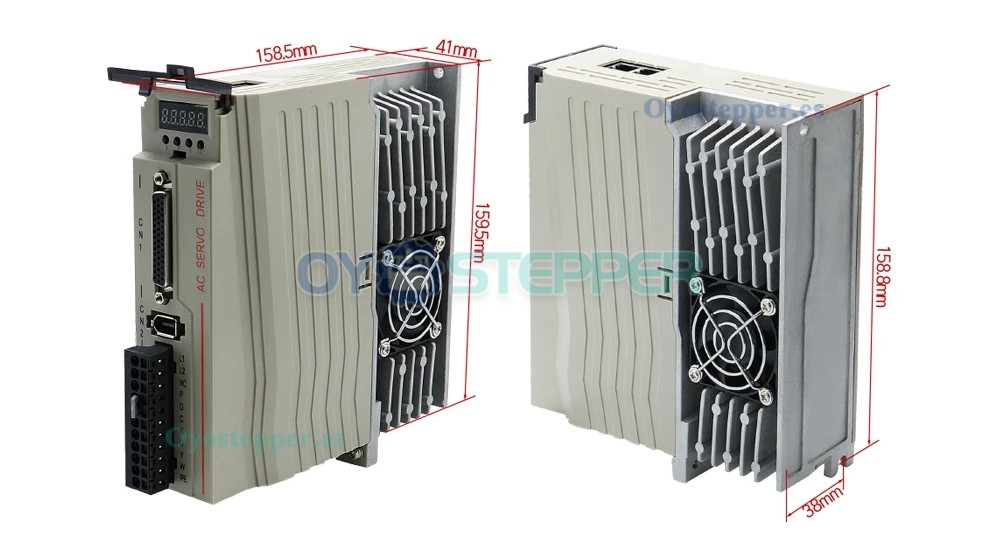

Kit de Motor Servo AC con Controlador 400 W / 600 W / 750 W / 1000 W 110 V / 220 V 1.27 a 3.8 N·m para CNC
Kit de Motor Servo AC con Controlador 400 W / 600 W / 750 W / 1000 W 110 V / 220 V 1.27 a 3.8 N·m para CNC
Descripción:
1: Soporta señal de pulso (5V o 24V), cantidad analógica (0-10V), control Modbus RS485.
2: Compatible con sistemas CNC y PLC.

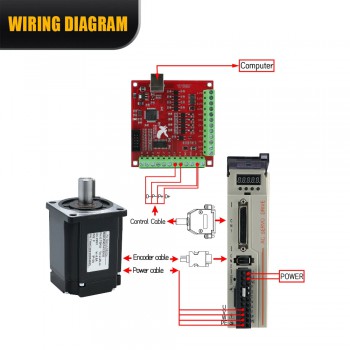

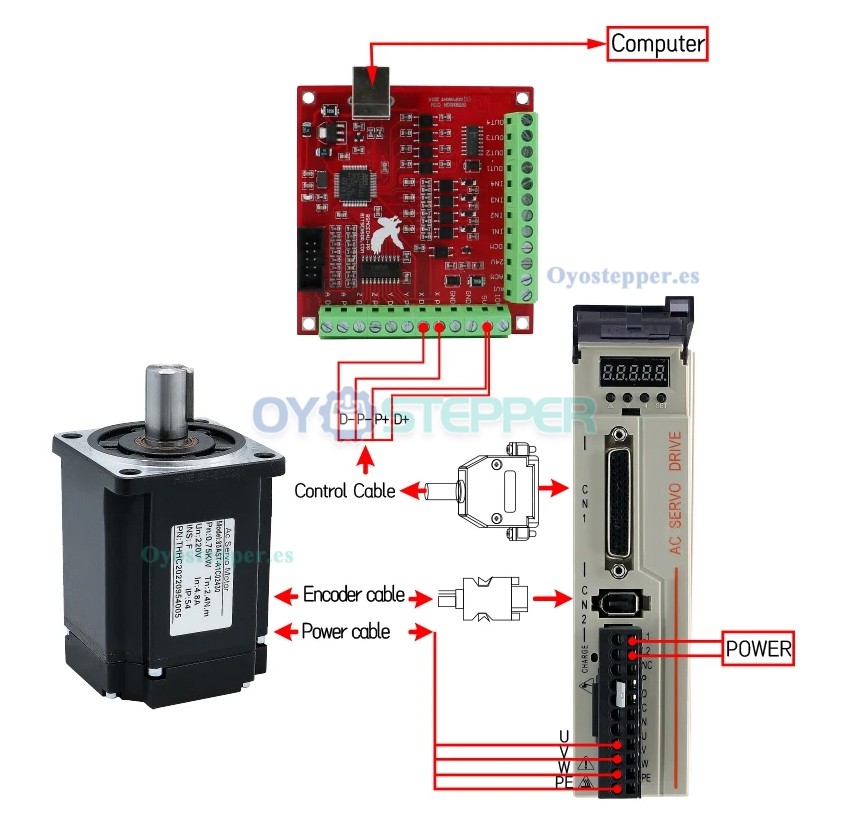

3: Para conectar una señal de pulso de 24V, es necesario conectar dos resistencias de 2K 1/4W en serie para P+ y D+, de lo contrario, el controlador se quemará.

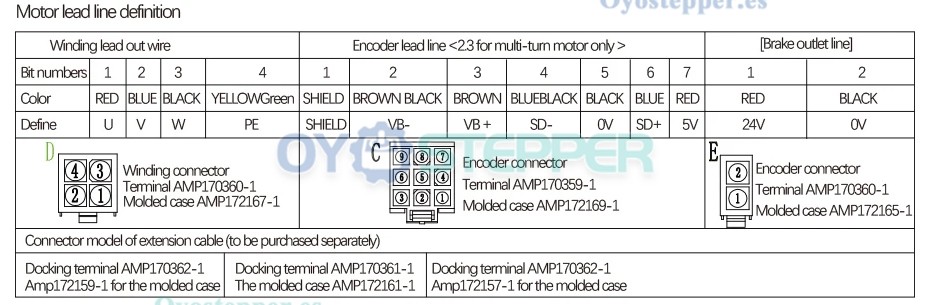

4: El motor con frenos necesita ser conectado a una fuente de alimentación externa de 24V y a un relé.
5: Configuración al encender:
Cambiar P-036 a 1 (dirección opuesta) o 0 (dirección positiva) para la conversión de la dirección del motor.
Cambiar P-098 a 1 (habilitación interna) o 0 (habilitación externa).
Cuanto mayor sea el parámetro de P-029, la relación de engranaje electrónico, mayor será la velocidad.
Mantener presionado el botón de confirmación en E-SEF para mostrar "DONE" (guardado con éxito). Después de configurar todos los parámetros, apague y reinicie.

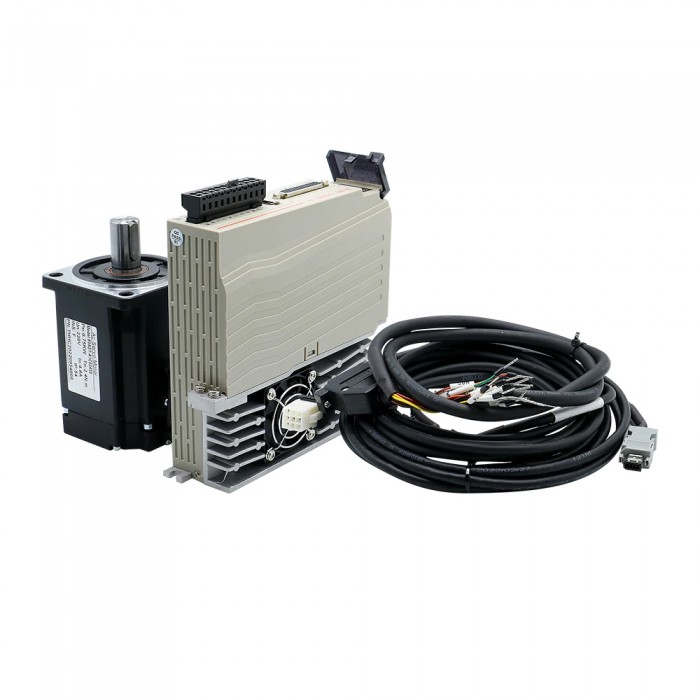

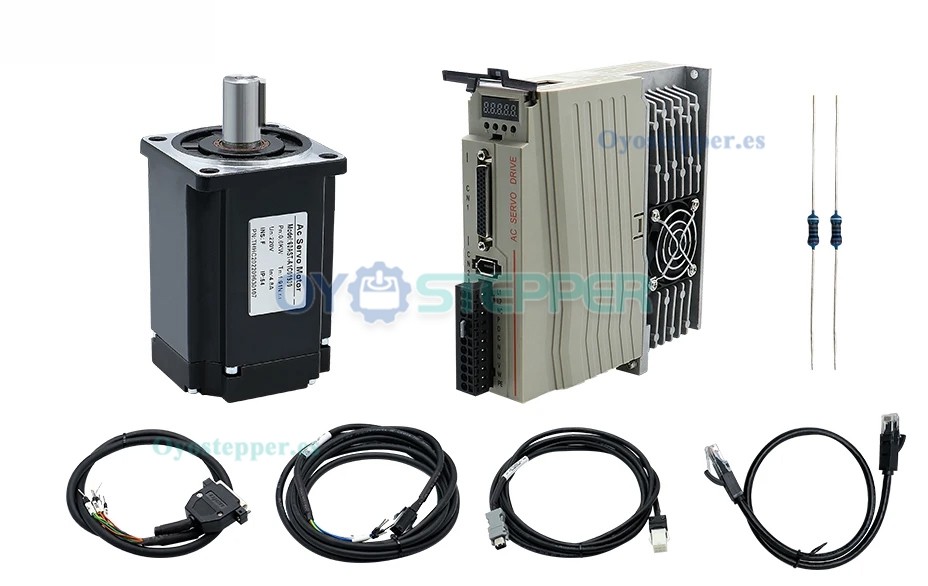

Lista de empaque:
1* Servomotor (17 bits absoluto)
1* Controlador AC
1* Cable de Encoder de 3 metros + Cable de alimentación
1* Cable de señal de control
2* Resistencias de 2K 1/4W
1* Cable RS485
.jpg "Kit de Motor Servo AC con Controlador 400 W / 600 W / 750 W / 1000 W 110 V / 220 V 1.27 a 3.8 N·m para CNC")

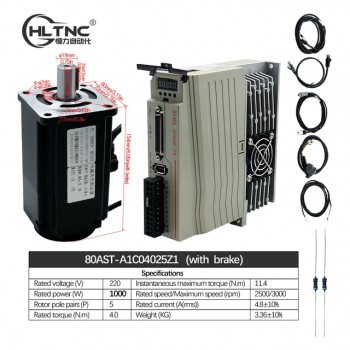

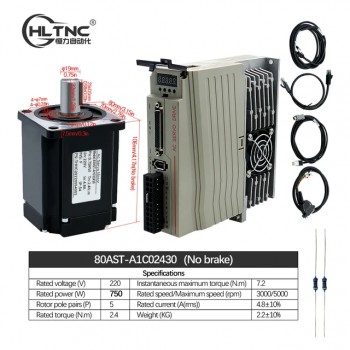

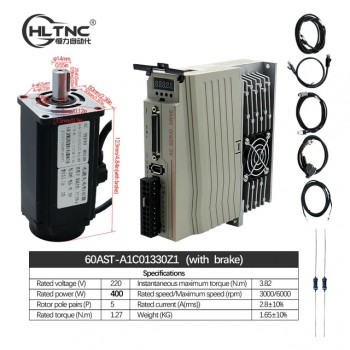

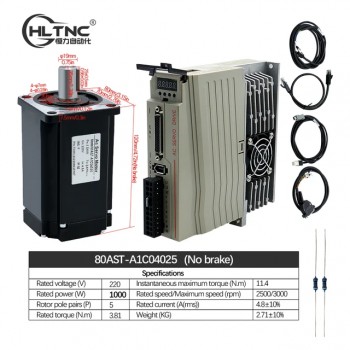

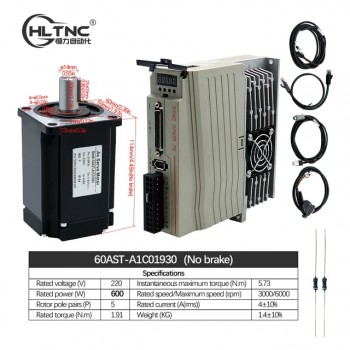

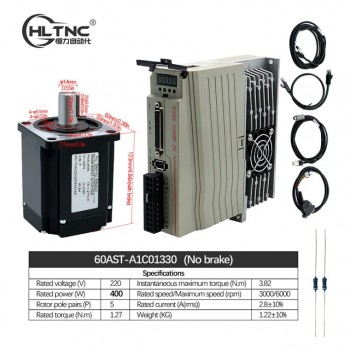

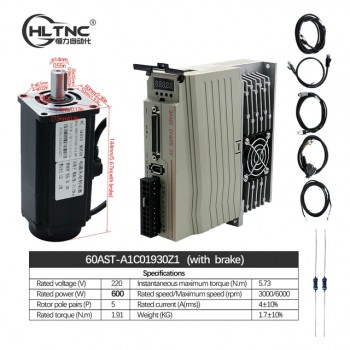

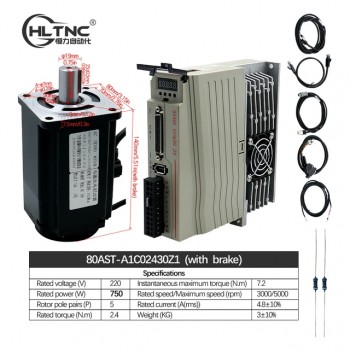

| Technical Specifications | ||||
| Rated Voltage (V) | 220 | 220 | 220 | 220 |
| Rated Power (W) | 400 | 600 | 750 | 1000 |
| Rotor pole pairs (P) | 5 | 5 | 5 | 5 |
| Rated Torque ( Nm ) | 1.27 | 1.91 | 2.4 | 3.8 |
| Instantaneous max torque (Nm ) | 3.82 | 5.73 | 7.2 | 11.4 |
| Rated Speed / Max Speed （rpm） | 3000/6000 | 3000/6000 | 3000/5000 | 2500/3000 |
| Rated Current ( A ) | 2.8±10% | 4±10% | 4.8±10% | |
| Instantaneous Max Current (A) | 8.4±10% | 12±10% | 14.4±10% | |
| Moment Coefficient (Nm/A ) | 0.42±10% | 0.54±10% | 0.5±10% | 0.93±10% |
| Back EMF Coefficient ( X10 V/rpm) | 27.5±10% | 32.5±% | 33.2±10% | 56±10% |
| >Resistance (Ω ) | 3±10% ( 20℃ ） | 3.2± 10%（20 ℃） | 1.6 ± 10%（20 ℃） | 3±10%（20℃） |
| Inductance ( mH) | 7.8±20% ( 20℃ ) | 8.4±20% ( 20℃） | 9.5±20% （20℃） | 19±20% (20℃） |
| Momento de inercia ( X10V/rpm ) | 0.68 [0.73] ± 10% | 0.82[1.7] ± 10% | 1.72 [1.77]± 10% | 2.4[2.45]±10% |
| Max radial load ( N ) | 245 | 392 | ||
| Max axial load ( N ) | 74 | 147 | ||
| Weight ( KG) | 1.22 [1.65]± 10% | 1.4[1.7]±10% | 2.2[3]±10% | 2.71[3.36]±10% |
| Encoder Resolution | 10000ppr | |||
| Protection Structure | IP65 | |||
| Insulation class | F | |||
| Insulation Resistance | More than 20m Ω DC500V | |||
| Insulation Withstand voltage | AC 1500V 1minutes | |||
| Vibration Level | Rated A for operation | |||
| Turn Around | Forward turn command,viewed from load sid, counterclockwise (CCW) | |||
| Surroundings | Temperature -20℃ ~ 40 ℃, humidity 20% ~ 80% RH ( no condensation ) , altitude below 1000 | |||
| Temperature - 20℃ ~ 60℃, (no freezing) humidity 20% ~ 80% RH (no condensation) | ||||
| Impact Strength | 98m/S ² | |||
| Vibration Resistance | 49m/S ² | |||

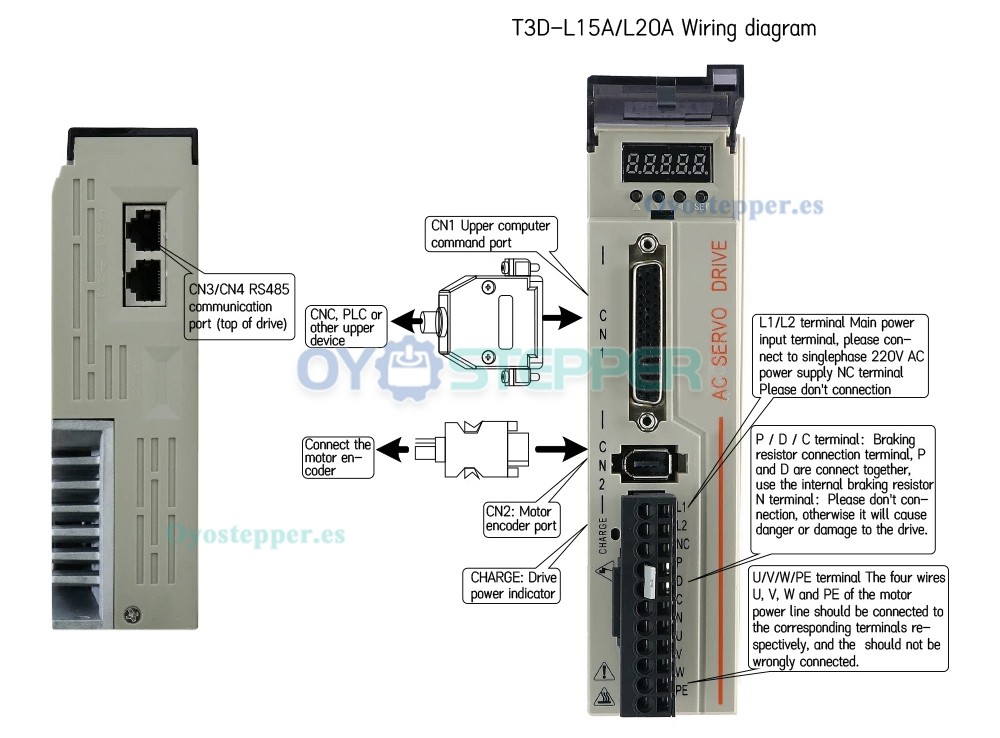

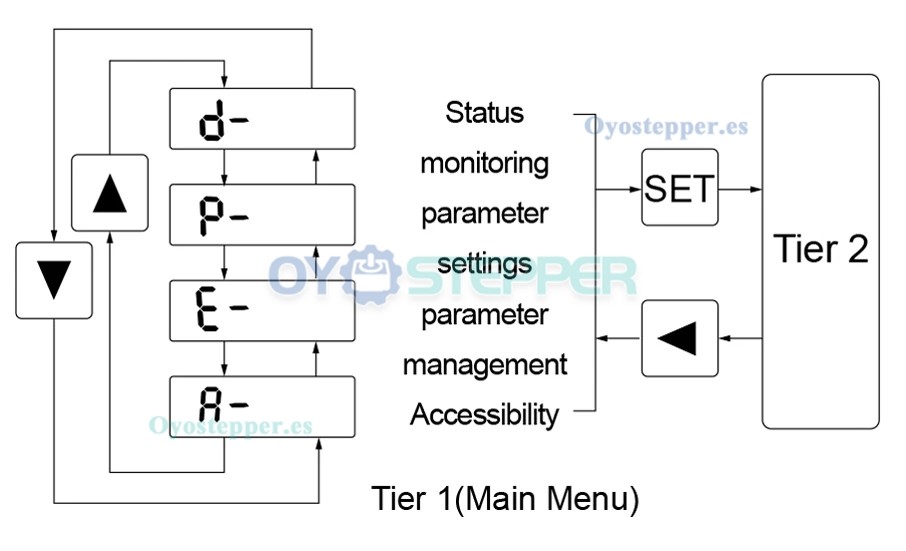

| Symbol | Name | Function |
| POW | Power Light (none) |
The decimal point of the second digital bube from the left lights up to indicate that the servo is under voltage |
| RUN | Runing light (none) |
The decinal point of the first digital tube from the left lights up to indicate that the servo is enabled |
| ▲ | Add key | Increase the serial number of value, long press has repeat effect |
| ▼ | Decrease Key | Decrease the serial number of value,long preass haas repeat effect |
| ◀ | Exit Key | Menu exit, operation cancelled, |
| SET | Enter | Menu Entry,parameter modification confirmation or operation confirmation |
Set After Power on:
Find P-098 and change it to 1
Find the E-SEF, press and hold the confirmation key until it shows DONE. then the parameters has been saved successfully. After all parameters are set, power off and restart.
Common parameters:
P-036 is changed to 1 (reverse direction) 0 (positive direction) motor direction conversion parameter. The default is 1 reverse direction
P-029 (electronic gear ratio numerator) is 1 by default, the higher the value, the faster the speed
(The above parameters are general setting parameters. If you need to modify other parameters, please refer to the manual or contact the technical/sales personnel)
The following parameters are rigid adjustment parameters. No adjustment is needed if the equipment is OK
P-005 (Speed ring rigidity)
P-009 (Position ring rigidity)
P-006 (generally, the maximum setting is about 100)
P-019 (generally, the maximum setting is about 300)
| Especificación del servomotor | |
|---|---|
| Potencia nominal(W) | 400 / 600 / 750 / 1000 |
| Voltaje de entrada(V) | 220 |
| Velocidad nominal(rpm) | 3000 / 2500 |
| Par nominal(Nm) | 1.27 / 1.91 / 2.4 / 3.8 |
| Velocidad máxima(rpm) | 3.82 |
| Par máximo(Nm) | 5.73 / 7.2 / 11.4 |
| Con freno | Con freno |

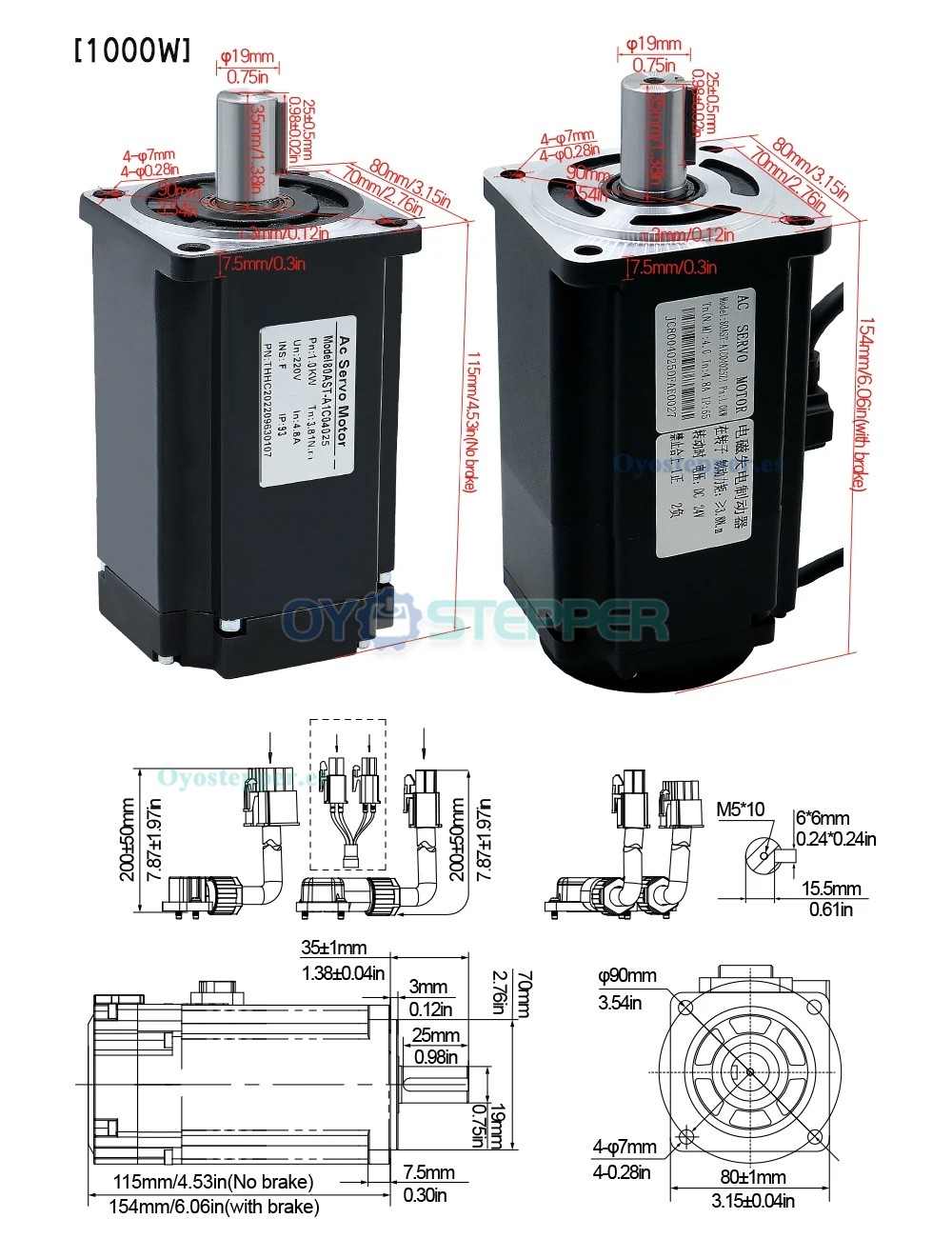

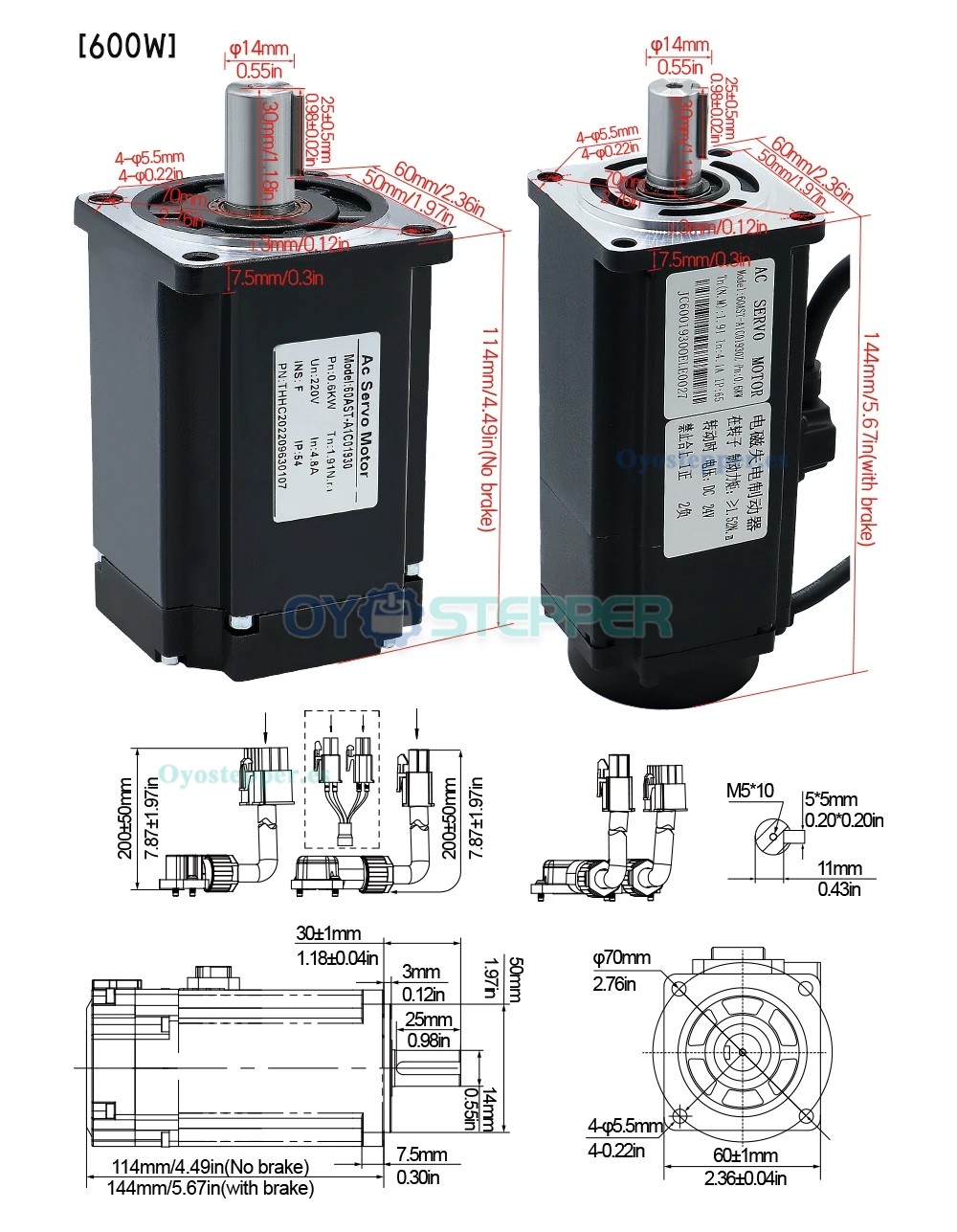

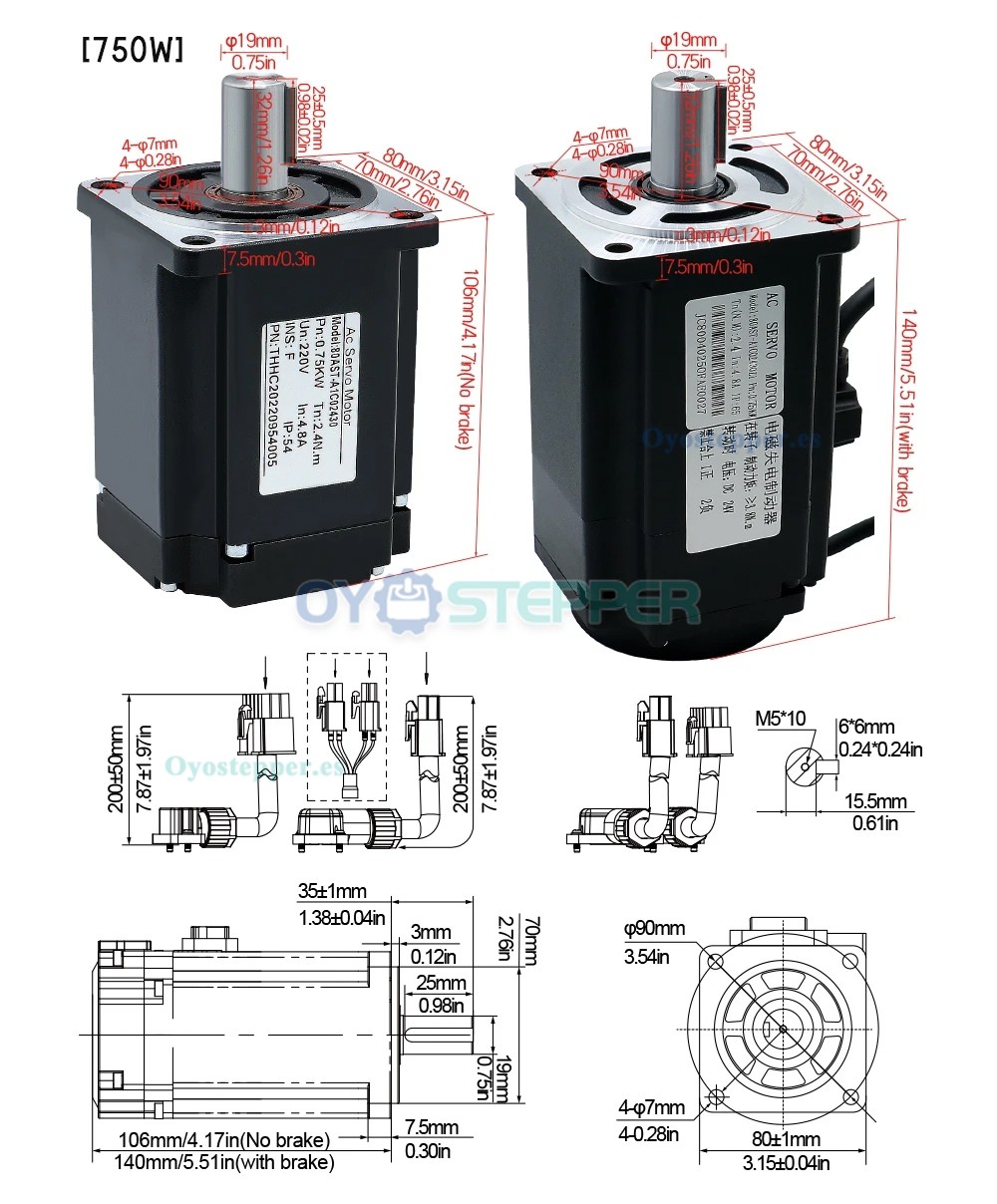

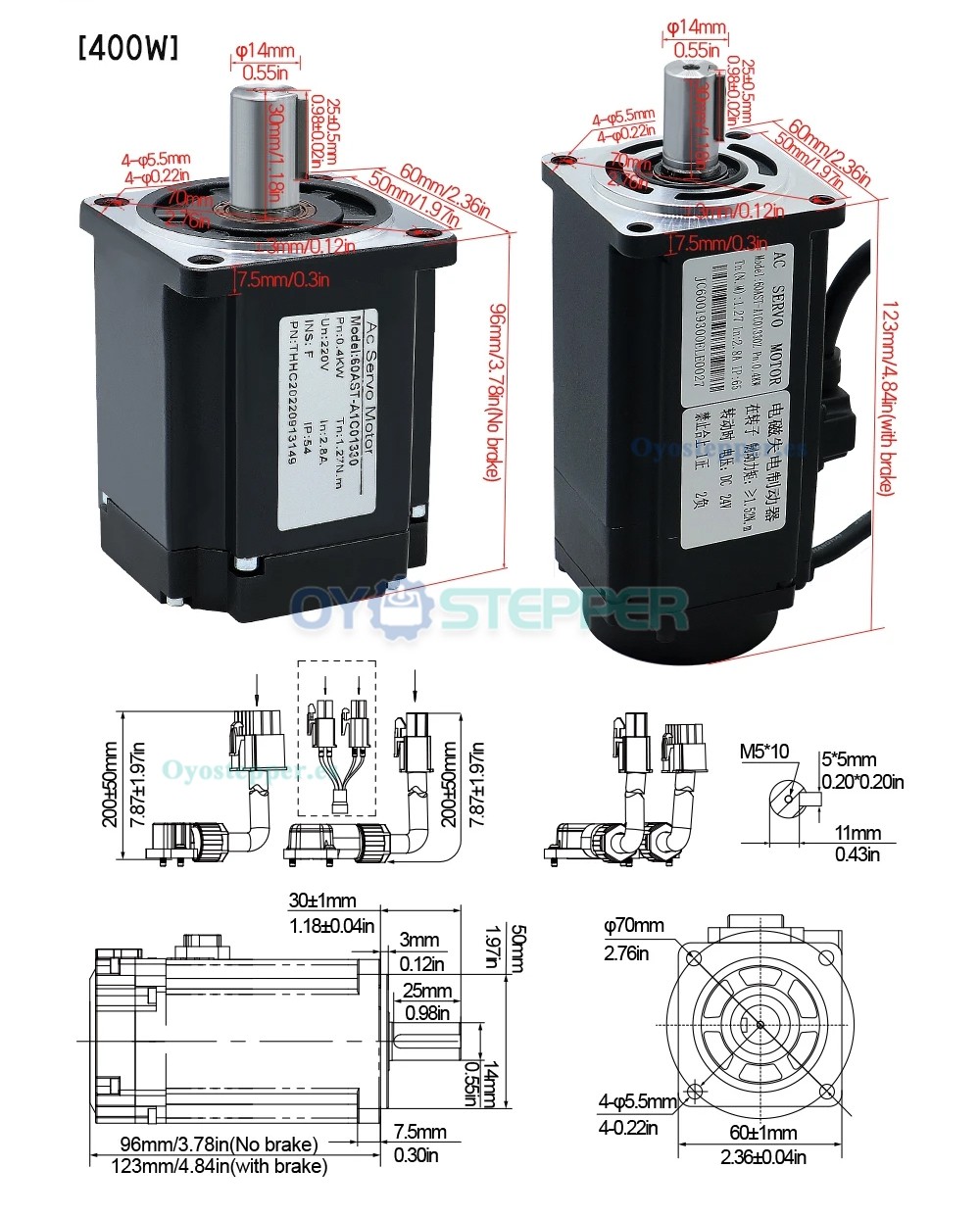

| Especificación física | |
| Longitud del cuerpo(mm) | 96 / 114 / 106 / 115 |
| Diámetro del eje(mm) | 14 / 19 |
| Longitud del eje(mm) | 25 |
| Tipo de eje | Chavetero |
| Peso(gramos) | 1660 / 1700 / 3000 / 3360 |
