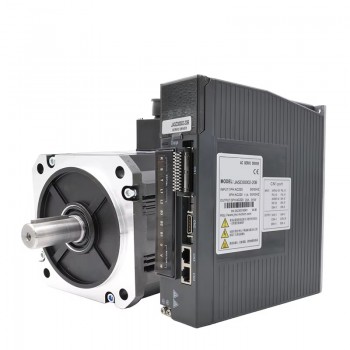

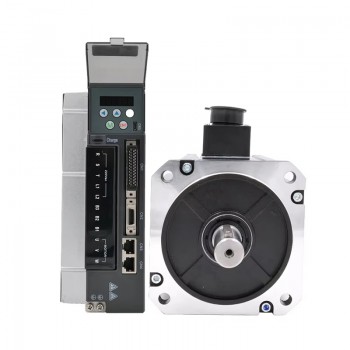

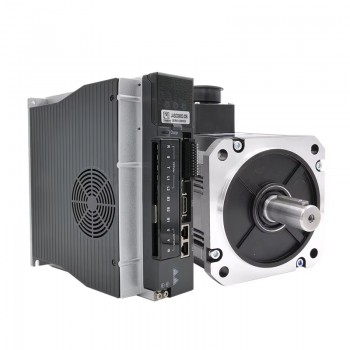

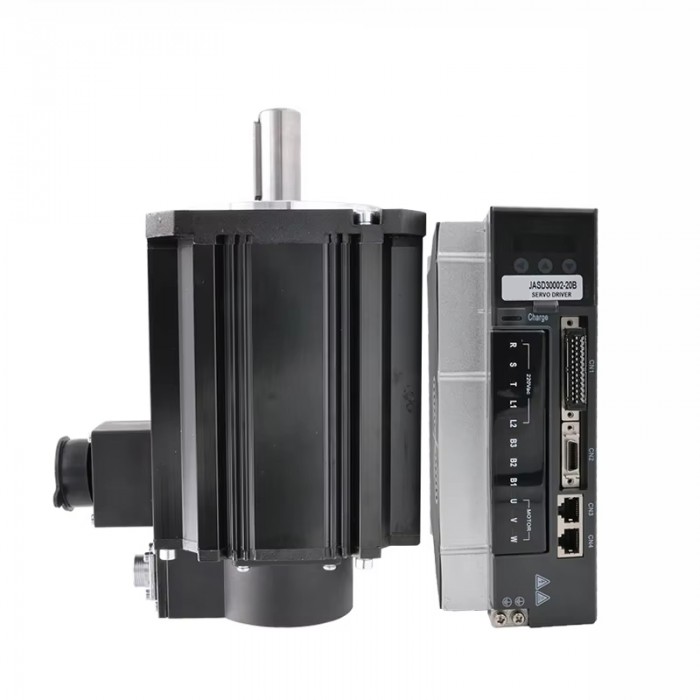

Kit de Motor Servo AC 2.3 kW + Controlador 14.64 N·m 1500 RPM 12.3 A con Encoder Absoluto de 17 Bits
2.3KW AC Servo Motor & Servo Driver Kit 14.64N.m 1500RPM 12.3A with 17 bit Absolute Magnetic Encoder

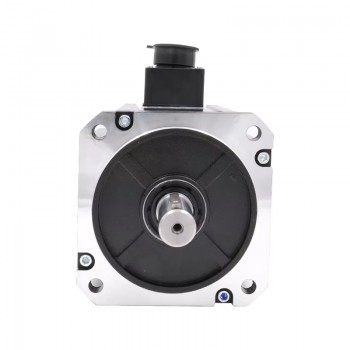

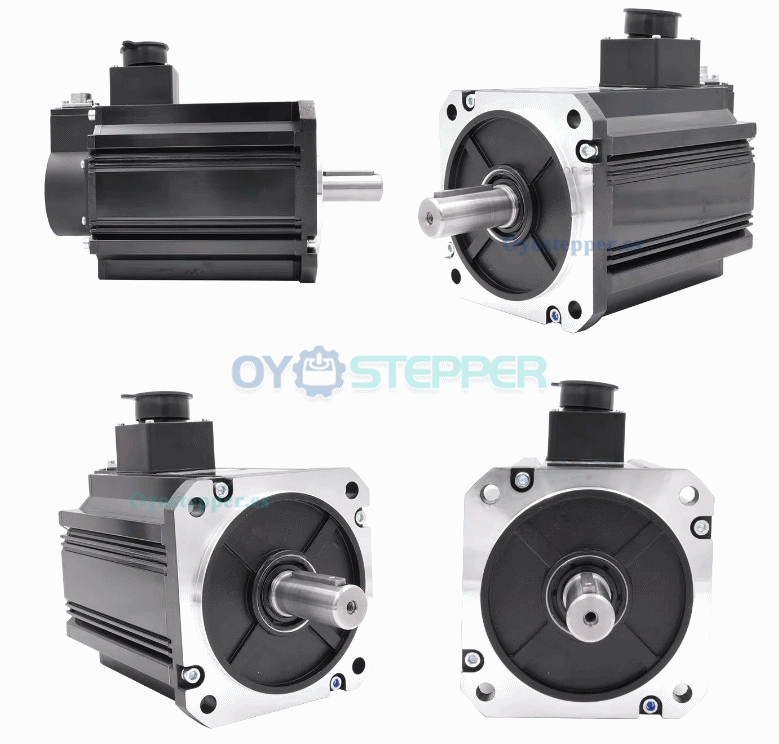

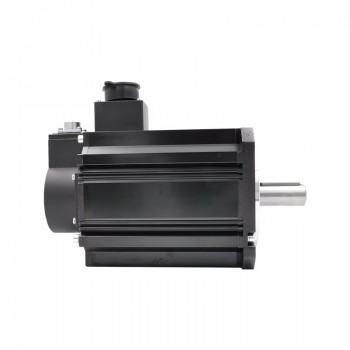

Servo Motor Specification:
Part Number:130JASM523215K-17B
Phase:Single-phase
Rated Power:2300W
Rated Torque:14.64N.m
Peak Torque:28.6N.m
Rated Speed: 1500RPM
No Load Speed:2000RPM
Power Supply:220V
Rated Current:12.3A
Control Type:Pulse type
Input Voltage:AC 180V-240V, 50/60Hz
Control Type:Pulse type
Rotor Inertia:12.3kgcm²
Encoder:with 17 bit absolute magnetic encoder;

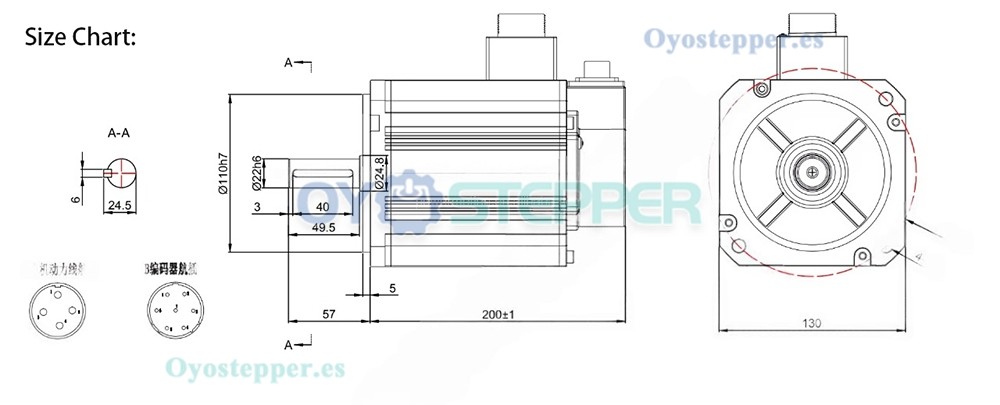

Physical Specifications:
Frame Size:130x130mm
Body Length withBrake:257mm
Shaft Diameter:22mm
Shaft Length:57mm
Keyway Length:40mm
Weight:14kg;

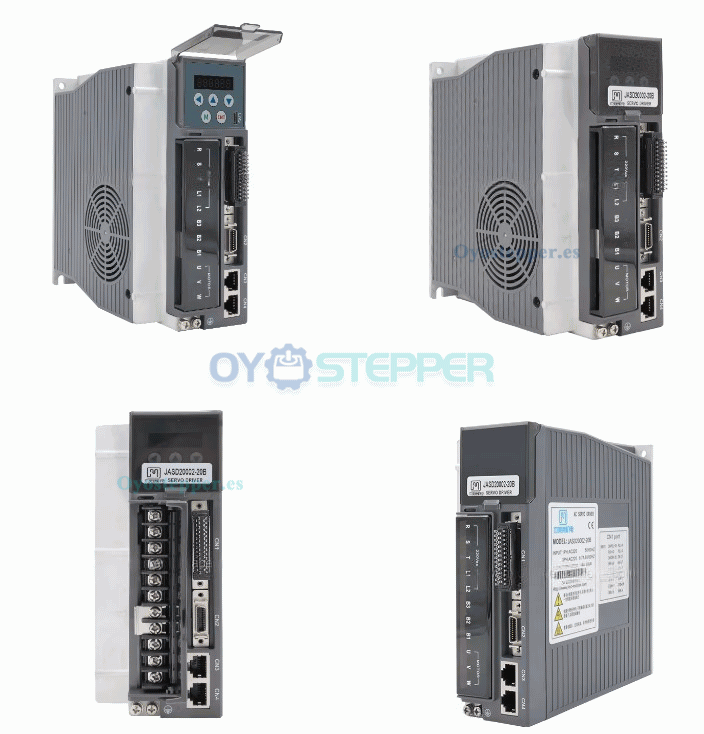

Servo motor driver specification:
Modelo:JASD20002-20B
Rated power:2KW
Single/3 phase 220V servo drive;
Single phase continuous input current:8.7A
Continuous output current:14A
Max output Current:33A
Input voltage:3 Phase AC 180V-240V, 50/60Hz;
Braking resistor:Built-in braking resistor;
Communication function:RS232, for debugging on PCRS485, support modbus protocol (only for reading data).
Dimension:180x169.5x75mm
Weight:4kg;

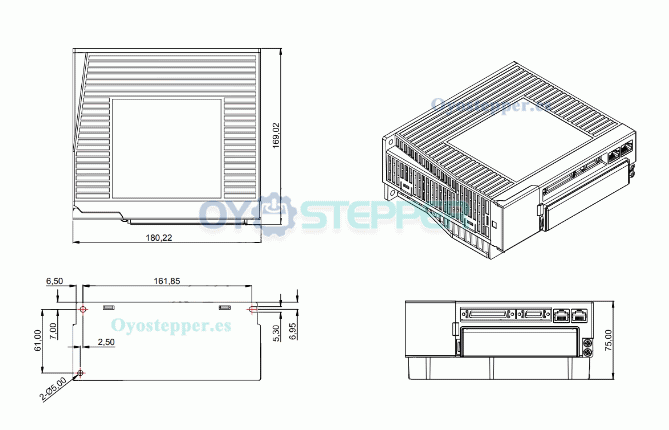

Servo Driver Dimension Drawing:
| Especificación del servomotor | |
|---|---|
| Corriente nominal | 12.3 |
| Número de fase | Monofásico |
| Velocidad sin carga | 2000 |
| Voltaje de la fuente de alimentación | 220 |
| Codificador | Con codificador magnético absoluto de 17 bits |
| Base del motor | 130x130 |
| Tipo de servomotor | Servomotor de CA |
| Modos de control | Tipo de pulso |
| Potencia nominal(W) | 2300 |
| Velocidad nominal(rpm) | 1500 |
| Par nominal(Nm) | 14.64 |
| Par máximo(Nm) | 28.6 |
| Con freno | Sin freno |
