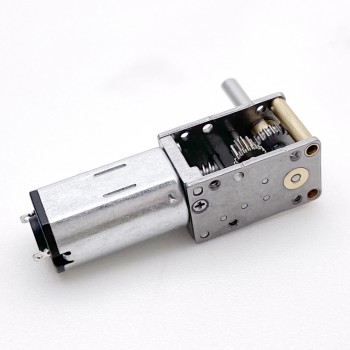

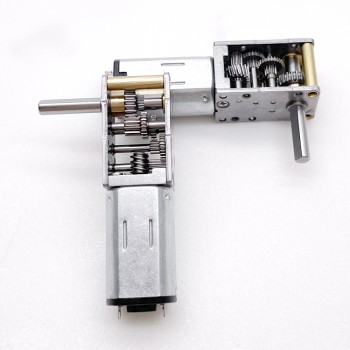

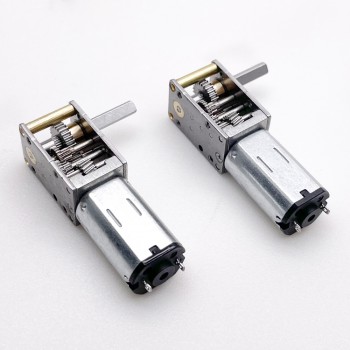

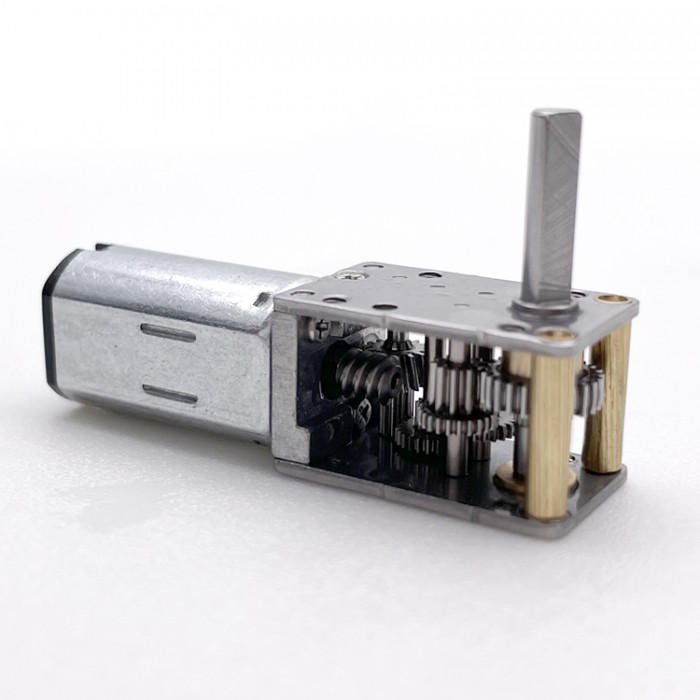

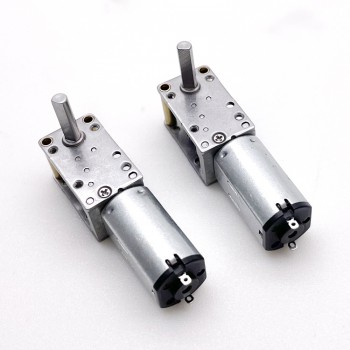

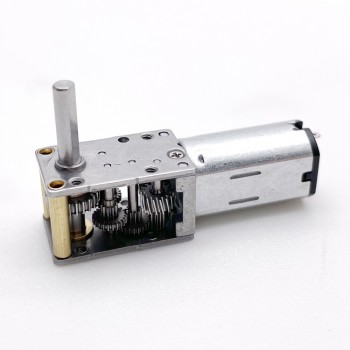

Pack de 2 Mini Motores Eléctrico DC 6V/12V con Reductor Sin Fin 1kg·cm 12×20mm Salida a 90°

DC Worm Gear Motors is the effective solution for powerful and efficient motor drive applications. The motor is designed to deliver high torque output even at low speeds, making it suitable for a variety of industrial and automotive applications.

Features:

1. Small size dc gear motor with low speed and big torque

2. 2.12*20mm gear motor provide 1.0Nm torque and more reliable

3. Suitable to small diameter, low noise and big torque application

4. Dc Gear motors can match encoder,3ppr

5. Relación de reducción: 40、80、95、190、219、438、504、1007、

6. Motor:Can be equip N10，N20，N30 and N50 dc brushed motor;

4 Etapa: 40:1/80:1/95:1/190:1

5 Etapa: 219:1/438:1

6 Etapa: 504:1 /1007:1

Aplicación:

BOAT, Car, Electric Bicycle, Home Appliance, Industrial equipment.

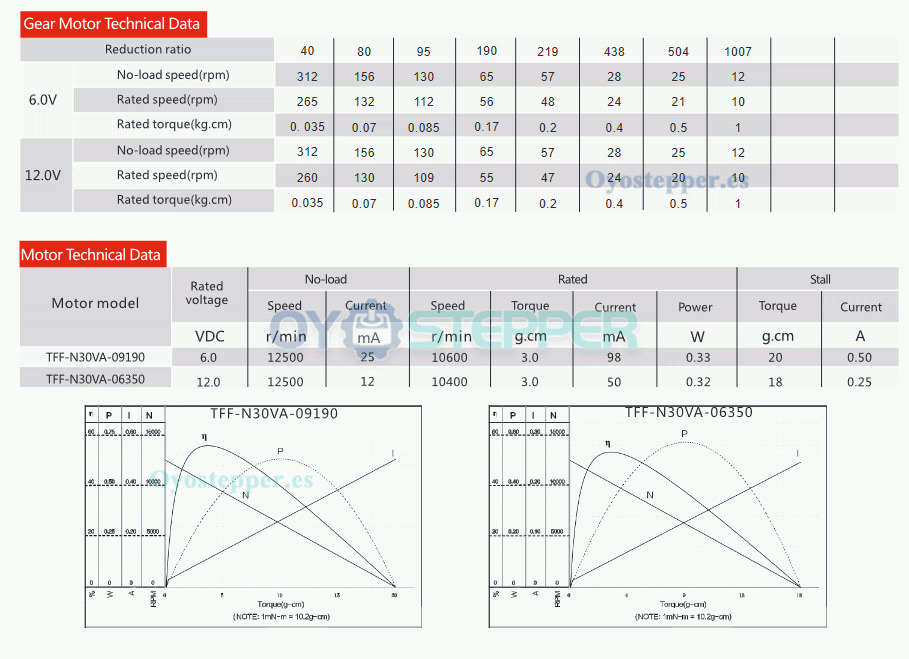

Electrical Specification

Part Number:TWG1220-N30VA

Rated Voltage:6V/12VDC

Rated Torque:1.0Kg.cm max

Max momentary tolerance torque: 2.0kg.cm

Rated current:98mA(6V)/50mA(12V)

No Load Speed W/O Gearbox: 12500RPM(6V)/12500RPM(12V)

Rated Speed W/O Gearbox: 10600RPM(6V)/10400RPM(12V)

No Load Speed W Gearbox: 12-312 RPM

Rated Speed W/ Gearbox:10-265 RPM

Rated Power:0.33W(6V) /0.32W(12V)

Tipo de engranaje:Worm gearbox

Tipo:Brush PMDC Motor

Eficiencia: 80%-90%

Construcción:Imán permanente

Ruido:30cm.<40db

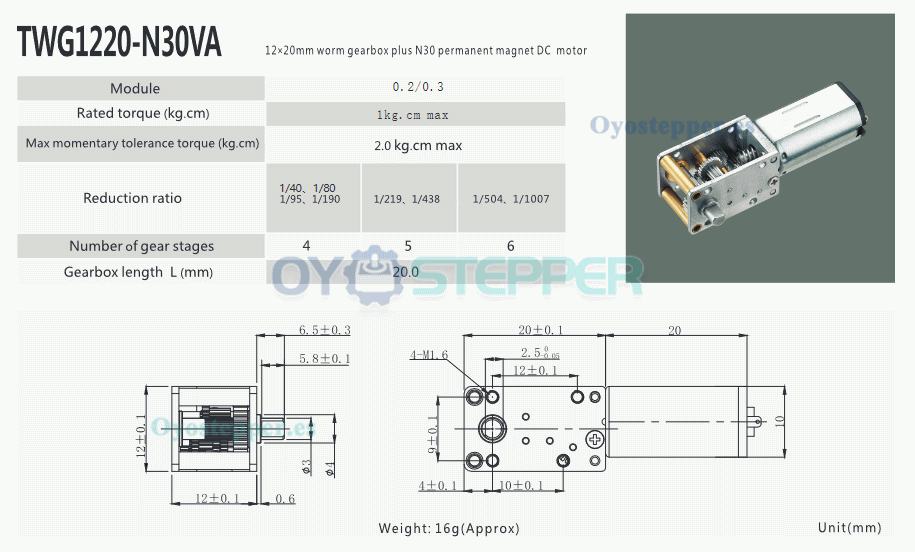

Physical Specification:

Motor Size:12*20mm

Motor Diameter:12mm

Length:20mm+Planetary gearbox

Gearbox Length:20mm

Shaft Type:D-cut

D-cut Diameter:2.5mm

D-cut Length:5.8mm

Shaft Diameter:3mm

Shaft Length:5.8mm

Weight:16g;
